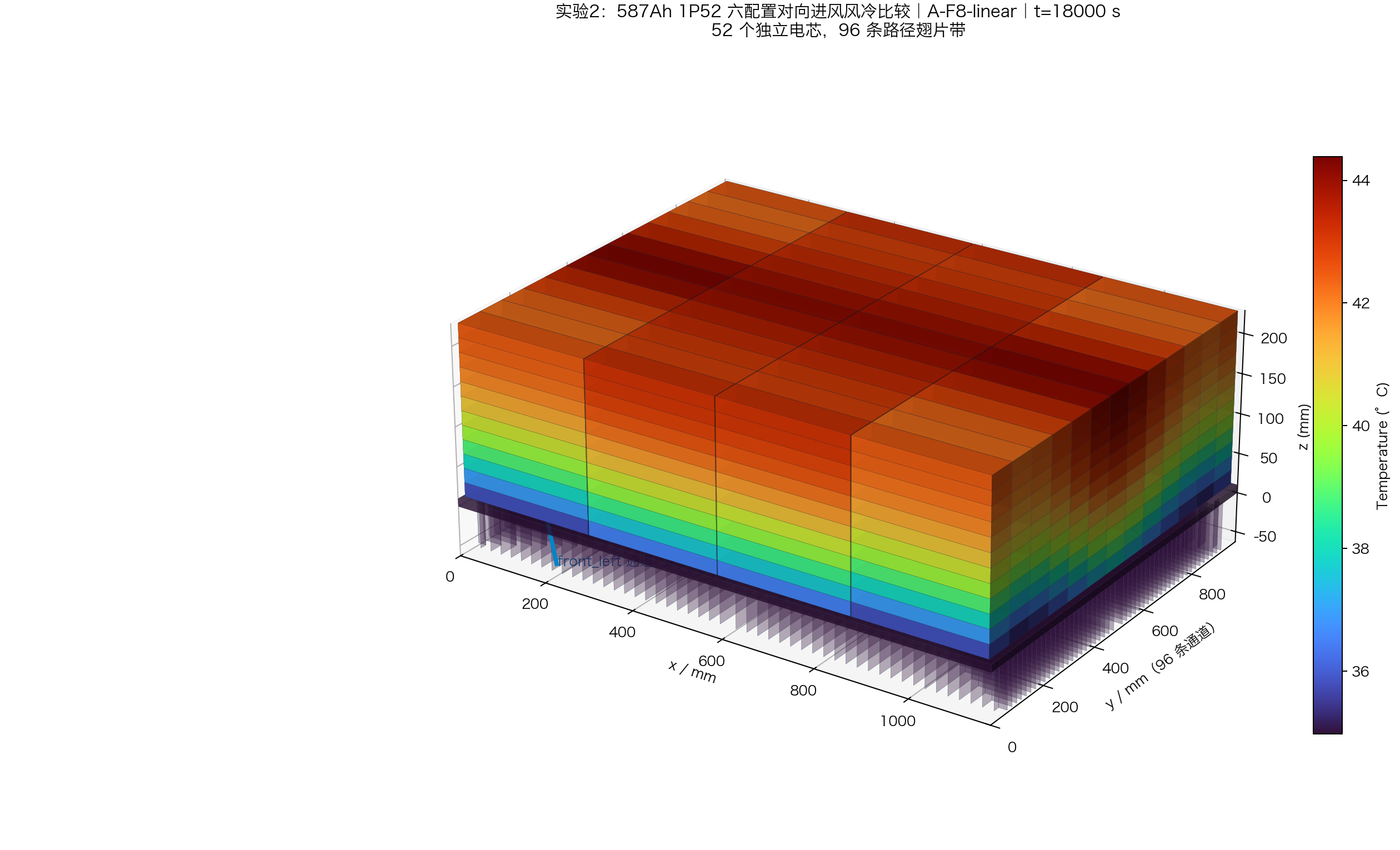

A-F8-linear 的 18,000 s 结果即时生成；色标取该时刻电芯实际最低—最高温。连续稳态补充结论：实验2的连续稳态按 A4、A8、A12、B4、B8、B12 分配置并按两种风机曲线分别核对，结果已列入六配置横向表，不把 A/B 的同风机数合并。 这不是 18,000 s（5 h） 瞬态选型门槛，二者不得混用。
52 个电芯逐个建模，温度表按 4×13 展示；同一电芯、界面与底板边界下切换 A/B 两套封闭底部风道，每套均为 96 条独立空气通道。连续额定热源为 29.06 W/芯，连续最大热应力为 40 W/芯。真实单次0.5C工况按显式分段热源计算。 上部电芯舱绝热且空气不进入；净散热只经过底部界面、底板和封闭风道。
A-F8-linear 的 18,000 s 结果即时生成；色标取该时刻电芯实际最低—最高温。完整通过配置：A12、A8、B12。推荐只在两种风机曲线和四项连续工况均通过后签发；合格配置先比较风机数，再比较最坏温度、温差和压力。
| 指标 | A4 | A8 | A12 | B4 | B8 | B12 |
|---|---|---|---|---|---|---|
| 正式工况完整 | 通过 | 通过 | 通过 | 通过 | 通过 | 通过 |
| 两曲线全部通过 | 未通过 | 通过 | 通过 | 未通过 | 未通过 | 通过 |
| 全程最坏最高温/℃ | 68.595 | 51.490 | 49.760 | 57.281 | 52.671 | 51.628 |
| 最坏芯均温差/K | 24.737 | 4.537 | 2.641 | 3.607 | 2.915 | 2.698 |
| 最坏芯内温差/K | 14.377 | 10.657 | 10.698 | 11.299 | 11.856 | 11.984 |
| 最坏流量变异系数 | 0.5774 | 0.2021 | 0.0930 | 0.0327 | 0.0189 | 0.0164 |
| 最坏风机压力/Pa | 163.467 | 251.585 | 325.841 | 185.883 | 296.901 | 371.911 |
| N−1最差温度/℃ | 68.595 | 46.648 | 43.772 | 51.433 | 45.686 | 44.693 |
| N−1最差工况 | A-N1-F4-linear | A-N1-F8-linear | A-N1-F12-linear | B-N1-F4-linear | B-N1-F8-linear | B-N1-F12-linear |
| 受失效风机影响区域 | 前左角区（该角区停风） | 前左角区（该角区降为单风机） | — | 共用均压腔的失效风机对应侧 | 共用均压腔的失效风机对应侧 | — |
| 基准连续稳态最高温/℃ | 51.623 | 45.552 | 43.970 | 51.658 | 46.570 | 45.573 |
几何公平性总验收：通过。
| 指标 | A | B | 相对偏差 | 门槛 | 状态 |
|---|---|---|---|---|---|
| 最小流通面积/m² | 0.050520 | 0.050520 | 0.000% | ≤1% | 通过 |
| 铝材体积/m³ | 0.0045123 | 0.0045833 | 1.548% | ≤3% | 通过 |
| 有效换热面积/m² | 6.016425 | 6.111000 | 1.548% | ≤3% | 通过 |
| 长度指标 | A | B |
|---|---|---|
| 几何长度/mm | 35.083～998.667 | 525.000～525.000 |
| 补偿等效长度/mm | 0.000～963.583 | 0.000～0.000 |
| 有效水力长度/mm | 998.667～998.667 | 525.000～525.000 |
| 布局 | 通道 | 区域 | 几何长度/mm | 补偿等效长度/mm | 有效水力长度/mm |
|---|---|---|---|---|---|
